Peel 3D scanner

Peel 3 3D scanner

Peel 3 can handle applications in aftermarket and tuning, AR, VR and digital content, education, heritage preservation and art, product design, healthcare, and MRO and engineering.

Customize and buy
Peel 3 3D scanner
Order now and get your Peel 3 within 5 business days Try it out for 15 business days and return it for free Made in Canada

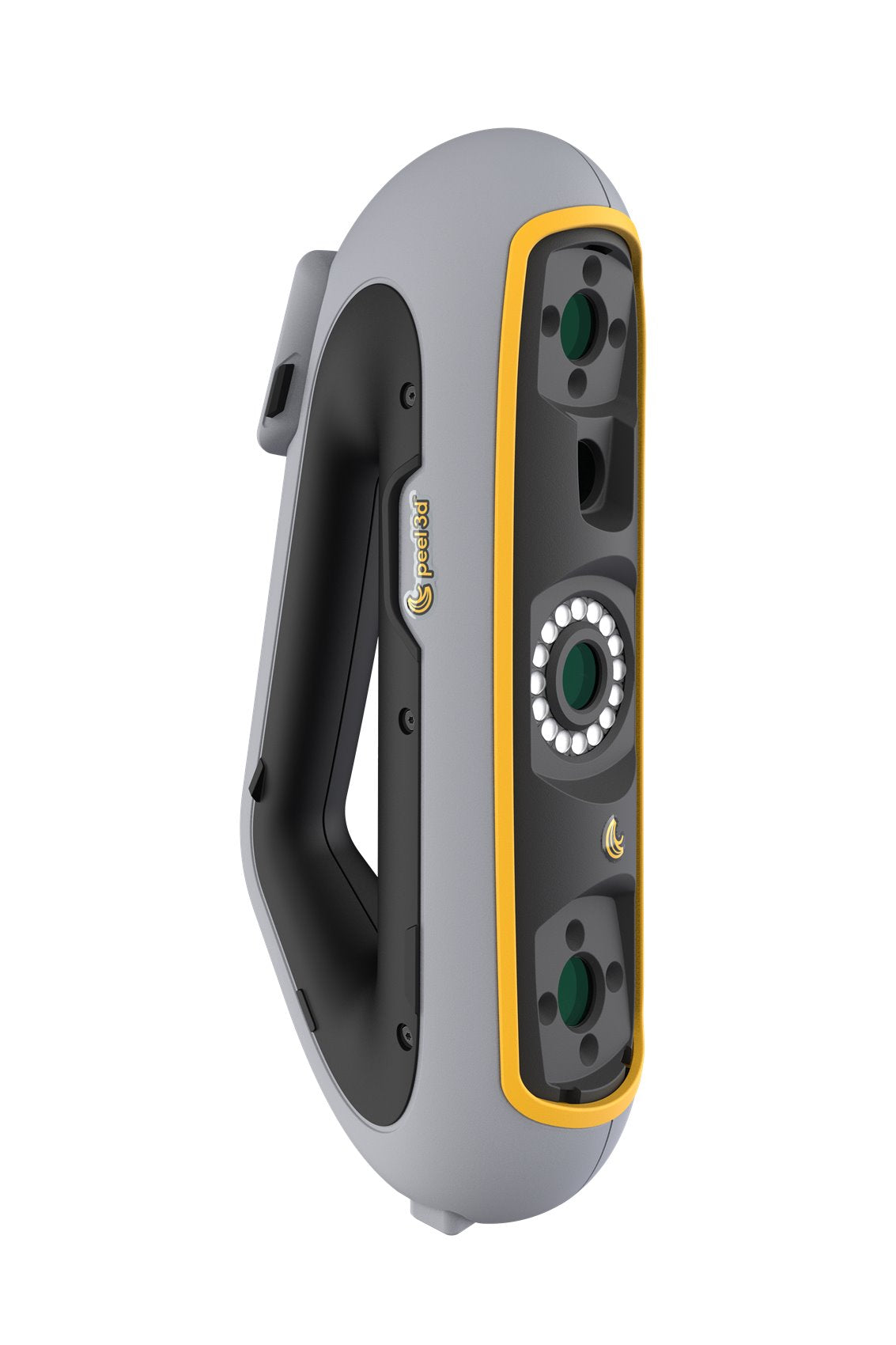

Peel 3 3D Scanner

Overview

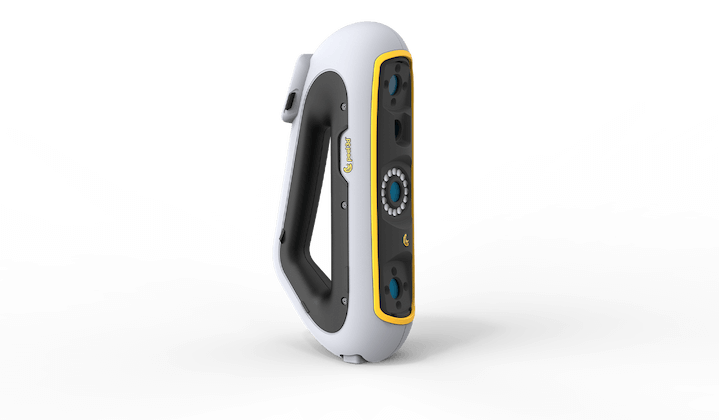

Peel 3 3D scanner

$6,367.50

Peel 3 is an affordable turnkey 3D scanning solution that offers the accuracy, reliability, and repeatability customers need for everyday professional work.

Choose your Peel 3 solution

Three versions for different workflows.

Compare the standard scanner, reverse engineering package, and Pro.CAD workflow before selecting the matching model above.

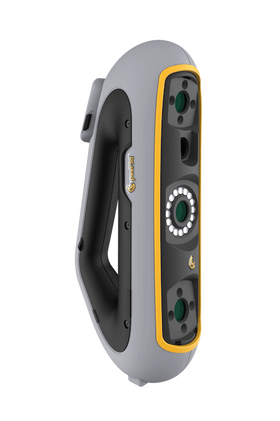

Peel 3 3D scanner Scanner + software

Peel 3 3D scanner

Introductory price of $6,367.50 USD

Take advantage of a 3D scanner with integrated data acquisition software that offers unprecedented performance levels for any object, regardless of complexity and color. Accelerate your workflows thanks to great 3D scanning speeds, an intuitive multi-function touchscreen, and industry-first haptic user communication through vibration. Gain peace of mind knowing that your investment in a Canadian designed and made 3D scanner will meet your expectations for years to come. All Peel scanners are powered by Creaform.

Best for customers who need a versatile 3D scanner for many object types and surfaces.

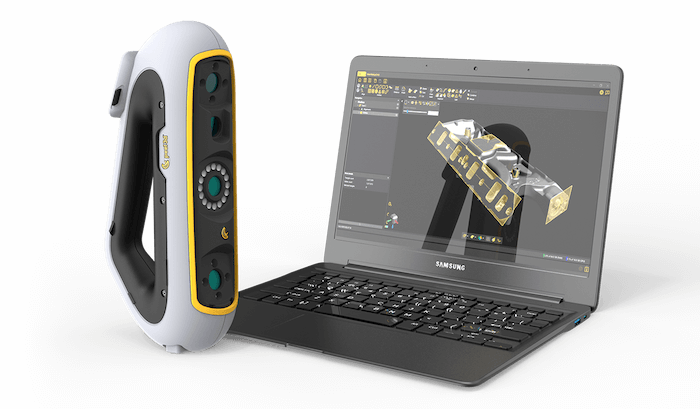

Peel 3.CAD 3D scanner Reverse engineering

Peel 3.CAD 3D scanner

Introductory price of $8,992.50 USD

Do you specialize in reverse engineering? No matter what type of RE project you have, it is time to consider Peel 3.CAD and its 3D scanning software. This complete, turnkey solution for reverse engineering applications gives you the versatility to work with your preferred CAD solution and optimize day-to-day work with user-friendly technology. Manufactured in Canada, Peel 3.CAD delivers reliable performance every time and is powered by Creaform.

Best for reverse engineering teams that need scan-to-CAD capability.

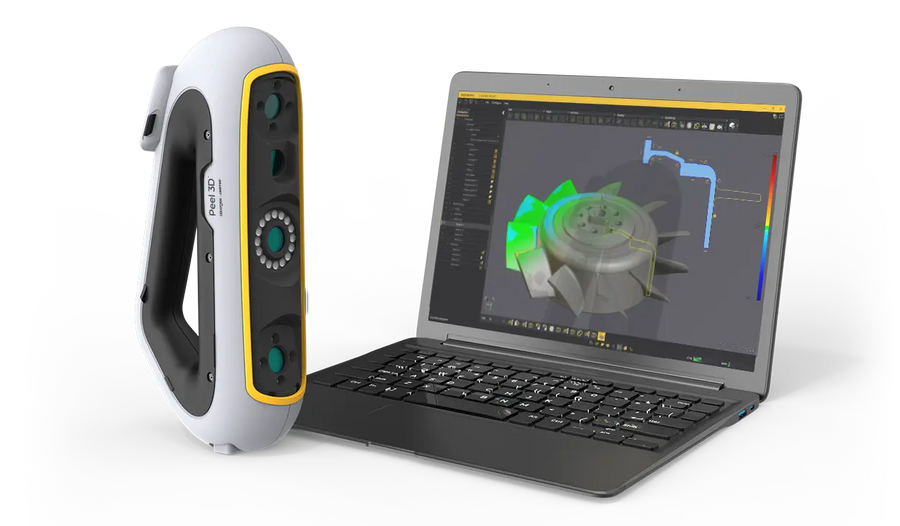

Peel 3 Pro.CAD Advanced CAD

Peel 3 Pro.CAD

Introductory price of $8,992.50 USD

Peel 3 Pro.CAD takes the complexity out of 3D scanning and creating first-time-right CAD models. This innovative software helps users transform scan data into accurate, ready-to-use CAD models, saving time and reducing rework. Designed for reverse engineering, product design, and MRO projects, Peel.CAD Pro offers advanced sketching, modeling capabilities, and real-time analyses to compare 3D models with original scan data. Manufactured in Canada and powered by Creaform.

Best for advanced reverse engineering, product design, and MRO projects.

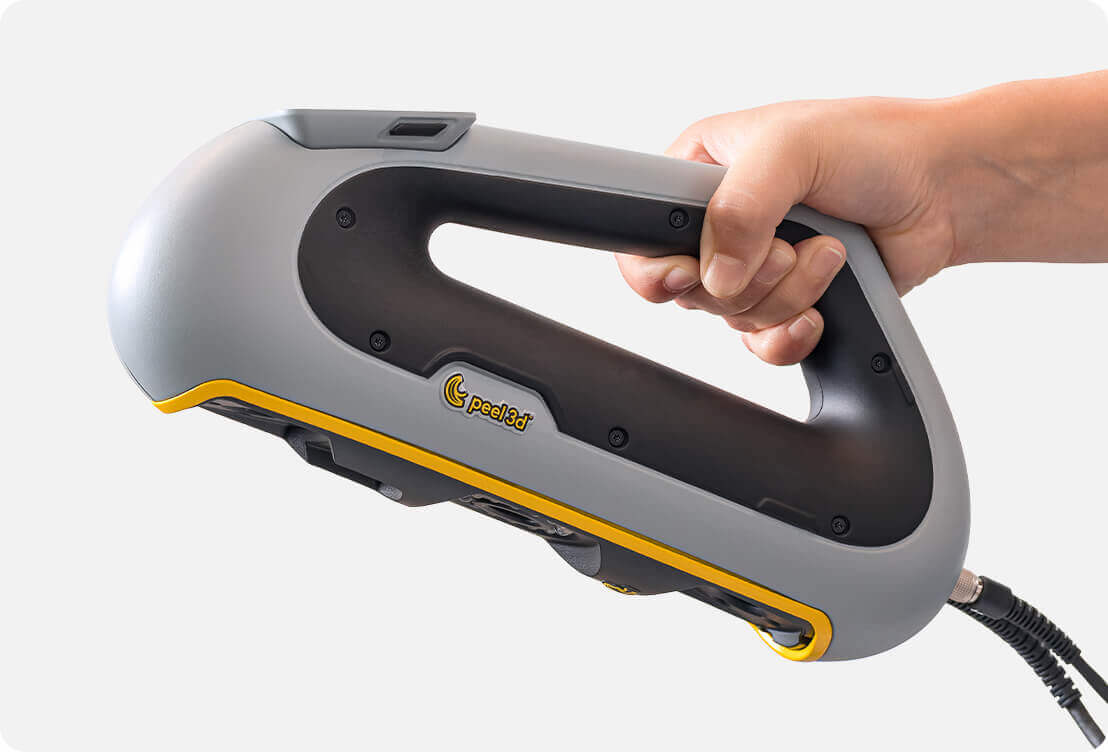

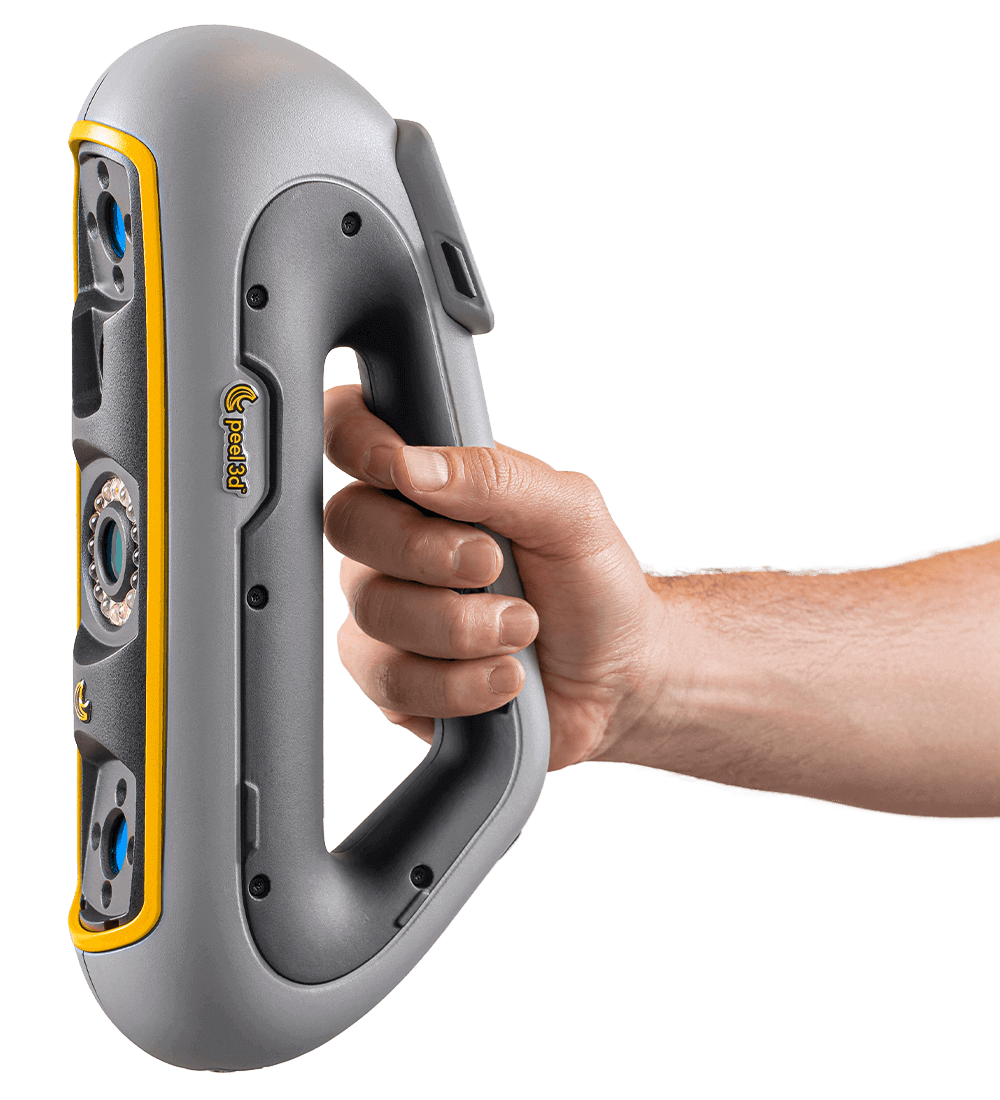

Ultra-ergonomic handle

Ultra-ergonomic handle

Peel 3's multi-grip triangulated handle is designed to stay comfortable through common 3D scanning positions.

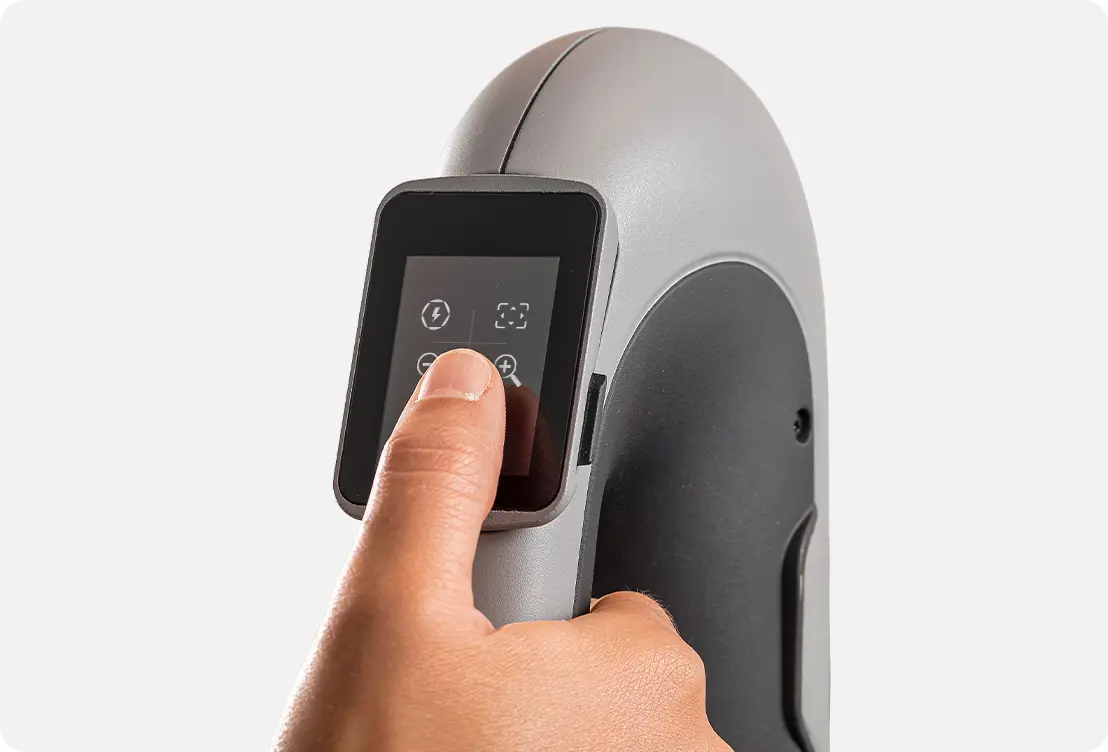

Slick LCD screen

Slick LCD screen

The multi-function touchscreen creates a more intuitive way to interact with the scanner and can work as a distance meter during scanning.

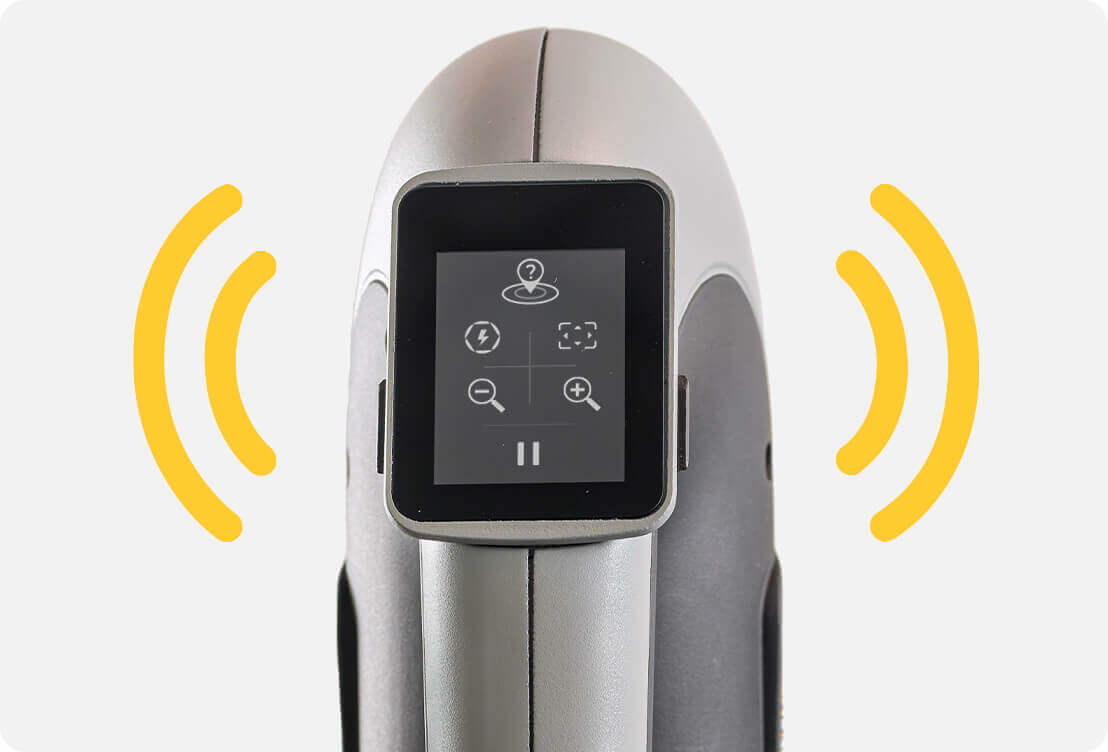

Feel the difference with haptic communication

Feel the difference with haptic communication

Recognizable vibration patterns guide users as they scan narrow or hard-to-reach places without a direct line of sight.

A sound investment

The perfect balance between price and performance.

  • Try for 15 days and return for free
  • Made in Canada
  • 1 year warranty
  • Powered by Creaform

Peel 3 workflow

See the scanner in action.

Walk customers through scanning, mesh cleanup, and CAD-ready exports before they choose a package.

Software

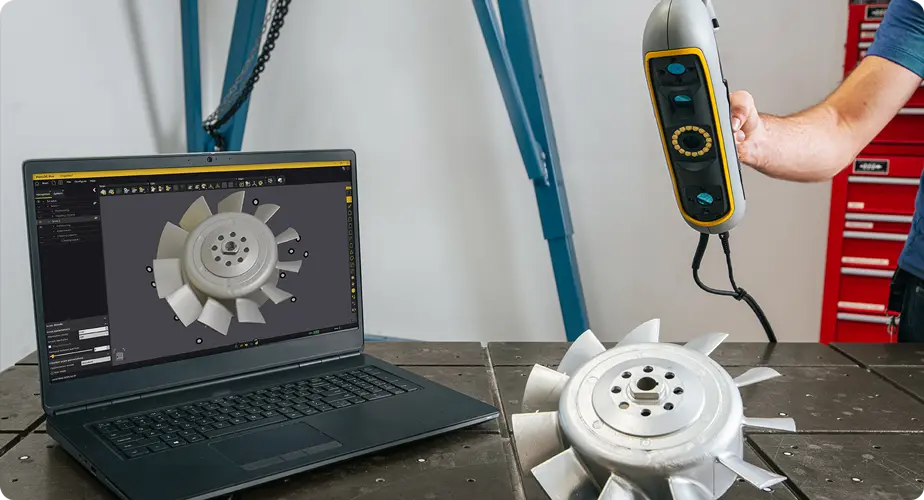

Elevate your work with integrated 3D scanning software.

Peel 3 comes with Peel.OS, a simplified data acquisition software that helps users process, clean, align, improve, and export 3D scanning data with guided workflows and integrated help.

New, simpler design Easy to learn Connected workflow
Elevate your work with integrated 3D scanning software.

Scan-to-CAD workflow

Choose how far you want to take the CAD workflow.

Compare what each Peel 3 package can handle, from scan files to editable native CAD models.

Scan (STL files) 1

Scan (STL files)

Align and improve 2

Align and improve

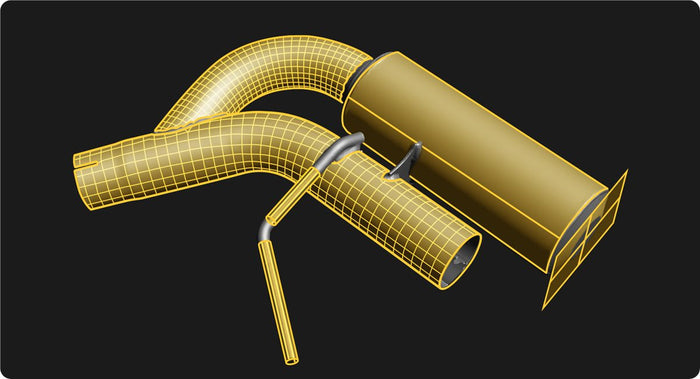

Feature extraction 3

Feature extraction

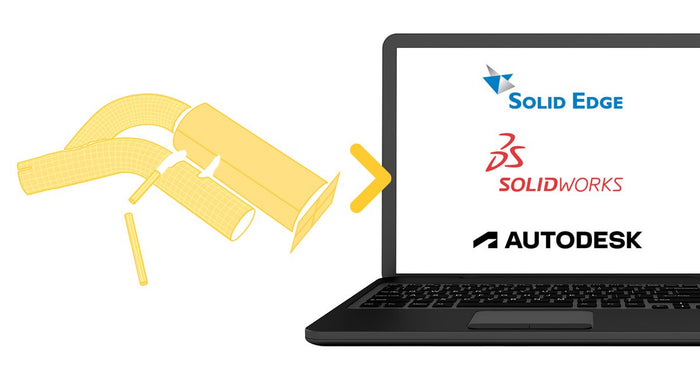

Sketching 4

Sketching

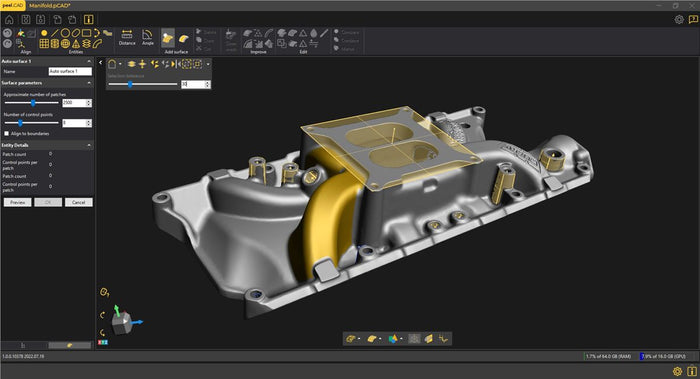

Modeling 5

Modeling

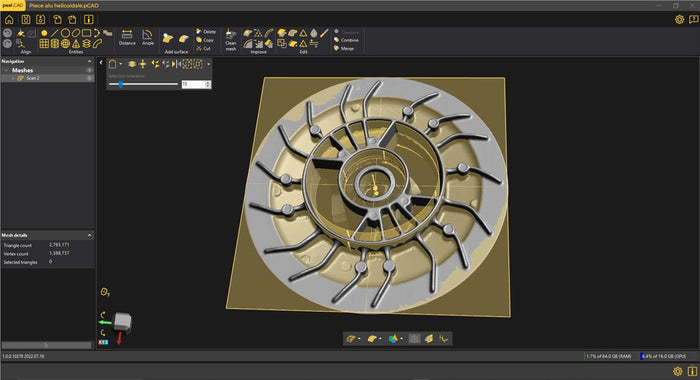

CAD model 6

CAD model

Peel 3
Export mesh
Peel 3.CAD
Transfer to CAD software
Peel 3 Pro.CAD
Export native CAD
OR
Transfer timelines to Solidworks

Look how easy it is.

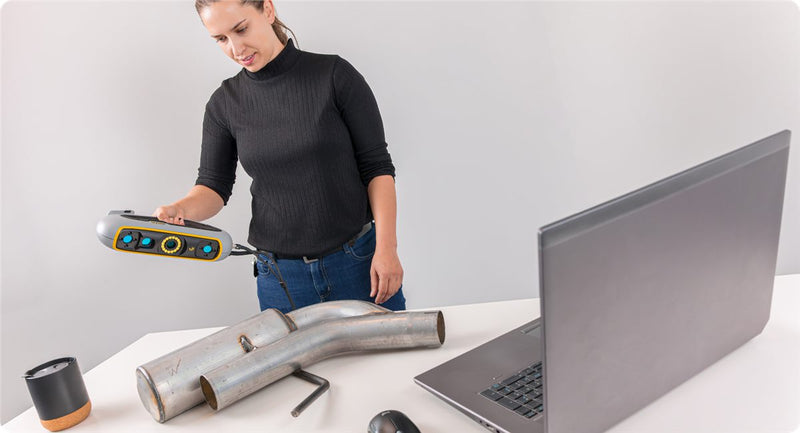

Scan the object 1

Scan the object

Both the object and scanner can move freely while users see what has been captured and what still needs attention.

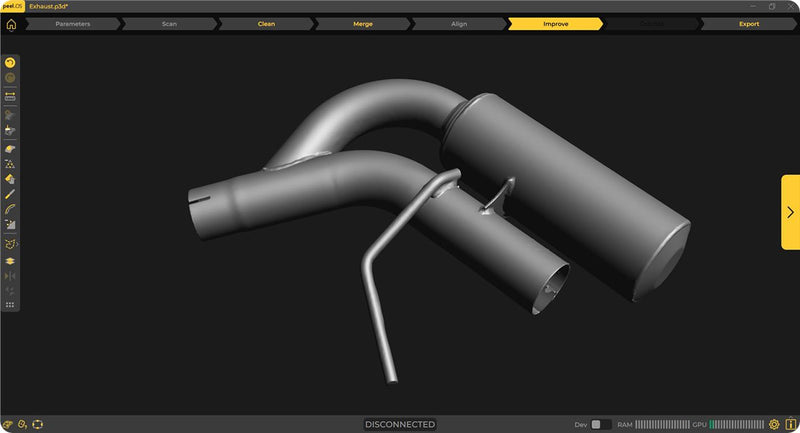

Finalize mesh 2

Finalize mesh

Clean up and align 3D scans with tools built for approachable, professional results.

Prep scans for further treatment 3

Prep scans for further treatment

Finish scans quickly before sending files into another software package or production workflow.

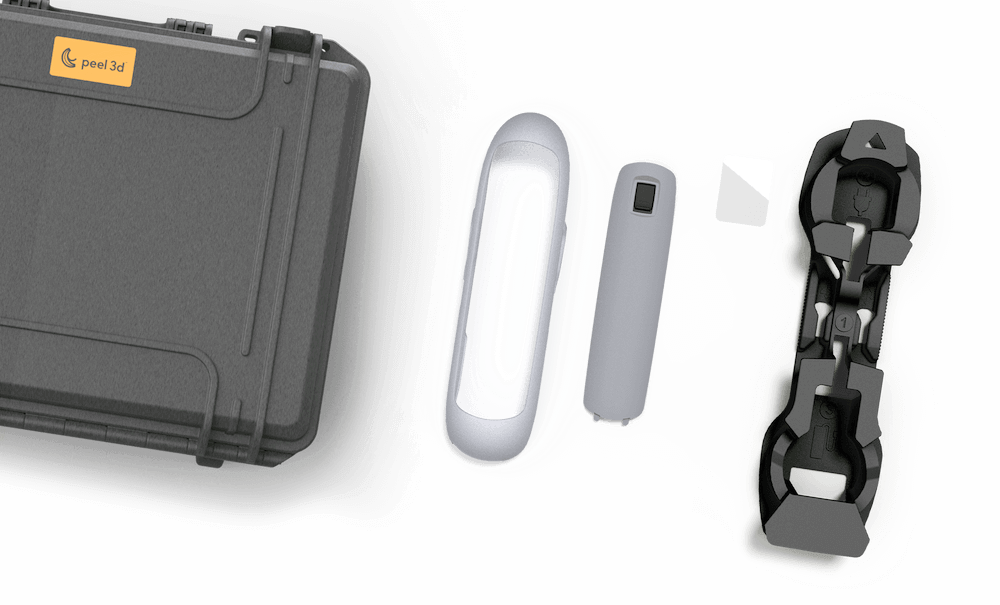

The best part? It is all included.

The best part? It is all included.

Get the software and essential accessories included when you buy Peel 3.

Foam insert as a light-duty carrying case Data acquisition software Power supply USB cable Regular positioning targets Super-adhesive positioning targets

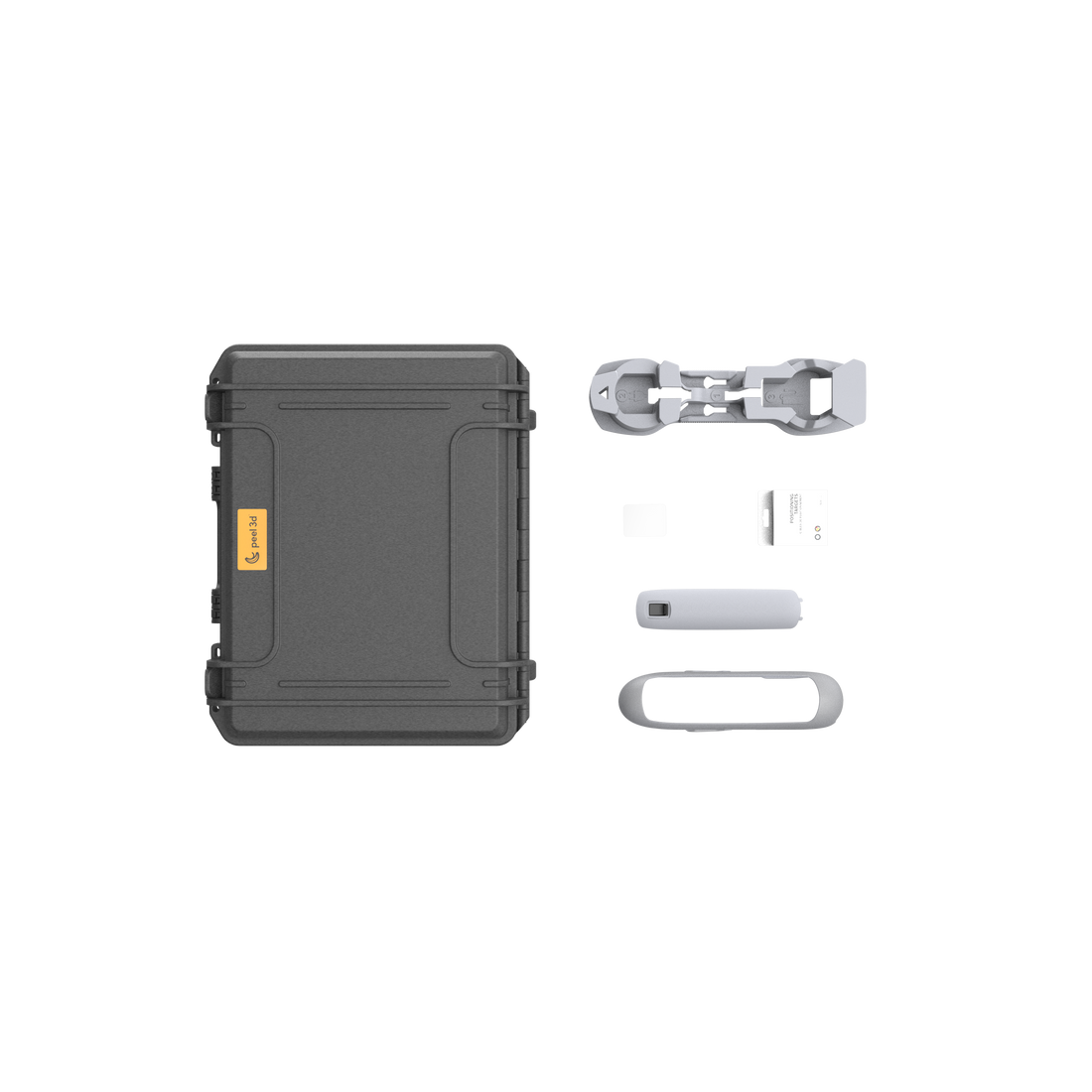

V.I.Peel and accessories

Protect, transport, and extend your scanner.

Safeguard your Peel 3 scanner with protection plans and accessories, including scanner protection, rugged transport, and workflow accessories.

Protect, transport, and extend your scanner.

Applications & specifications

Designed for many types of projects.

Peel 3D users apply high-performance, accessible 3D scanning across creative, technical, healthcare, education, and engineering workflows.

Aftermarket & tuning

Aftermarket & tuning

Support EV conversions, high-performance parts, racing modifications, component retrofits, and vehicle conversions.

AR, VR & digital content

AR, VR & digital content

Create realistic digital objects for training, maintenance material, high-fidelity objects, furniture, SFX, and movie productions.

Healthcare

Healthcare

Support orthotics, prosthetics, esthetic surgery, mobility assistance, cranial scanning, and compression garment workflows.

MRO & engineering

MRO & engineering

Help reverse engineer products, design molds and casts, accelerate repairs, produce spare parts, and develop safety equipment.

Technical specifications

Software Peel.OS, Peel.CAD, Peel.CAD Pro
Recommended object size 0.1 - 3.0 m (0.3 - 10 ft)
Accuracy Up to 0.050 mm (0.0020 in)
Volumetric accuracy 0.050 mm + 0.100 mm/m (0.0020 in + 0.0012 in/ft)
Mesh resolution 0.250 mm (0.01 in)
Scanning area 340 x 475 mm (13.39 x 18.7 in)
Scan speed 80 sec/m2 (7.4 sec/ft2)
Usage distance 250 to 550 mm (9.8 to 21.7 in)
Projector light source IR VCSEL
Scanner controls Touchscreen
Measurement rate 1,250,000 measurements/s
Dimensions 304 x 150 x 79 mm (12 x 5.9 x 3.2 in)
Weight 950 g (2.1 lb)
Connectivity USB 3.0

Why Peel is different

Complete solution

Peel 3 comes with dedicated 3D scanning software so customers get more from the full turnkey solution.

Easy to learn

Ergonomic hardware and intuitive interfaces help users learn scanning quickly.

New design

The comfortable body, touchscreen, and distance guidance reduce back and forth during scanning.

Help and support

Customers can reach support resources and Peel communities when they need help with their scanner.

FAQs

Have questions? We are here to help.

What is the difference between Peel 3, Peel 3.CAD and Peel 3 Pro.CAD?

Peel 3 is a versatile 3D scanner suitable for a wide range of applications that require mesh exports. The Peel 3.CAD solution offers specialized tools for reverse engineering, with functions optimized for precise feature extraction from scan data. Peel 3 Pro.CAD includes advanced sketching and modeling tools designed specifically for 3D scans to minimize the back and forth between 3D scanning software and CAD software.

What are the computer requirements?

Minimum requirementsRecommended specifications

Processor(1)Intel Core i7 (6+ cores) – 2.3 GHz or moreIntel Core i7 (8 cores) – 2.5 GHz or more

Operating System(2)(3)Windows 11

Graphics Card(4)(5)

NVIDIA (6 GB VRAM)
OpenGL 4.5 and higher,
CUDA Compute Capability 6.1(6)

NVIDIA RTX 3070 (8GB VRAM)
OpenGL 4.5 and higher

Memory16 GB32 GB

Hard DriveSolid-state drive (SSD)with at least 200 GB of free space512 GB SSD

Display1920 X 1080

Connecting Ports1x USB 3.0+2x USB 3.0+

(1) Processor must support AVX2 instructions
(2) 32-bits OS are not supported.
(3) Microsoft .NET Desktop Runtime 9.0
(4) GPU memory requirements are proportional to the amount of data collected in a single-scan session. Scanning large parts with higher resolution may exceed the minimum specs and require merging scans.
(5) Only NVIDIA graphic cards are supported. Minimum NVIDIA driver version: 581.15+. For recommended driver versions, refer to the software user manual.
(6) CUDA GPUs - Compute Capability: https://developer.nvidia.com/cuda-gpus#compute

How easily will I have access to support?

Help is actually directly integrated into Peel.OS. For additional questions, Peel users will have access to communities and forums from our customer portal!

Are the targets required?

Targets are more of a complement; the scanner can use geometry and texture for positioning. They are highly recommended for flatter or smoother surfaces as well as when accuracy is important.

Reviews and returns

You will appreciate the performance.

If not, return it within 15 business days upon receiving it. Reinforce reviews, return policy, warranty, and fast service here.
