What makes the F430 to be the most welcomed 3D printer product?

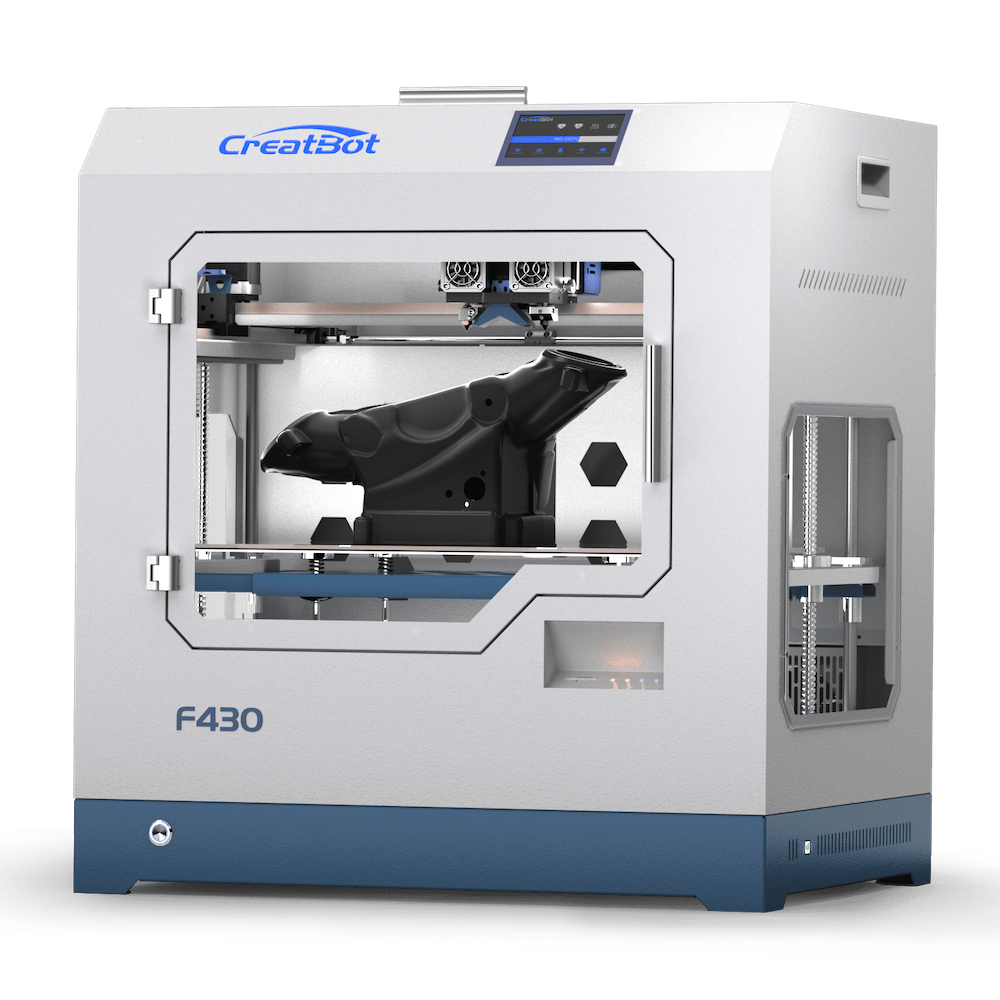

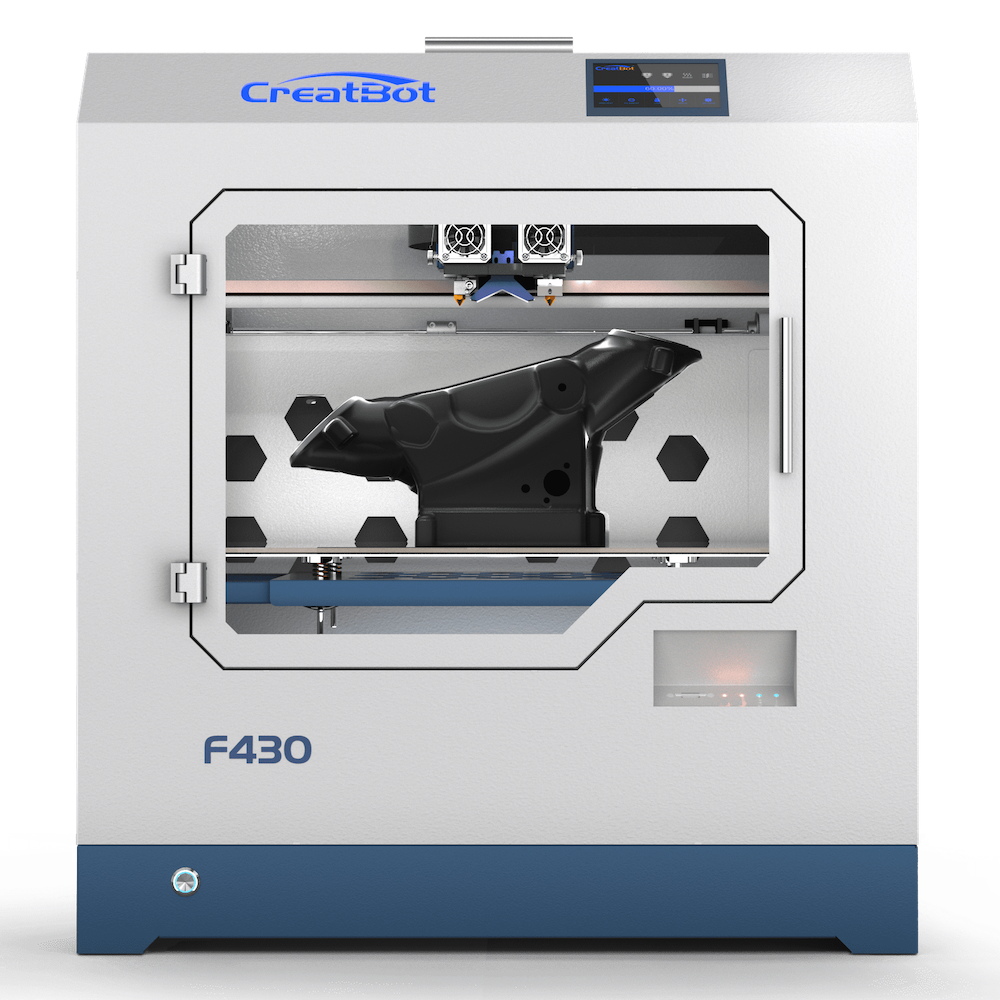

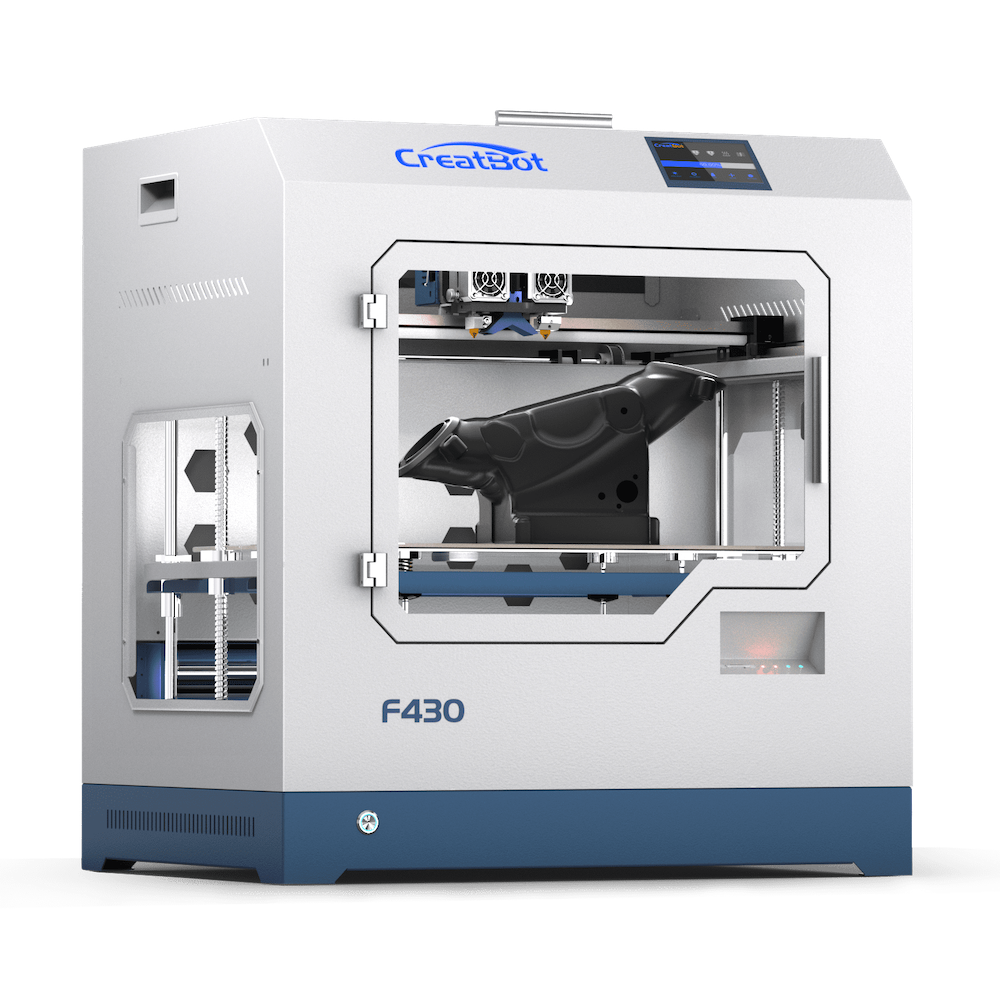

The CreatBot F430 is the powerful 3D printer with most advanced desktop 3D technology. It provides solutions for just about every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on.

Big Build Volume
400*300*300mm
High Resolution
0.04mm
Reliable Enough
to run 24/7
Compatible Filament
Consumer-grade: PLA, ABS, PETG, PVA, PC, etc

Industrial-grade: UltraPA, PA-CF, PA-GF, ASA, TPU/E, PP, PVDF, etc
Heat Control System
Hotend 260°C+420°C

Hot Bed 140°C

Hot Chamber 70°C

Nozzle Temperature Up To 420°C

The F430 is equipped with the 4th generation 1.75mm dual extruders and hotends. The left extruder is equipped with 260°C hotend, it is able to print with PLA, ABS, PC, Nylon, Carbon fiber, flexible filaments, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibilities for your application.

High Precision and High Speed

High Precision & High Speed

We have independently researched and developed the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach up to 0.04mm, and it allows filament extrusion steadily without blockage.

Fully Enclosed + Hot Chamber 70°C

Fully enclosed chamber can block all external interference and reduce noise. Hot chamber device provides a constant room temperature of 70°C, which can prevent prints from warping and deformation.

F430 Machine

UltraPA-GF with S-Blue quick remove support material

UltraPA-GF Model
UltraPA-GF Support Material
Outage Restore and Filament Detection

Outage Restore & Filament Detection

The printer automatically memorizes the current printing position and saves print data. Lower the platform and withdraw filament when power is lost unexpectedly. Printing resumes from the last stopped point after power recovery. The printer also avoids invalid printing by stopping the print and issuing a warning when the filament runs out.

HEPA Air Filter

HEPA Air Filter

The air filter system can absorb impurities and gases generated during printing of special filament materials like ABS, Nylon, and PC, helping create a cleaner and more suitable environment for homes, schools, and office spaces.

Aviation Aluminum Platform and Automatic Leveling

Aviation Aluminum Platform + Automatic Leveling

The printer is equipped with a heatless aviation aluminum platform with a surface flatness of 0.02mm. The surface can be attached with PEI special 3D printing film and BuildTak film. Most materials can adhere well to the bed. The automatic leveling sensor uses Z-axis intelligent compensation to achieve fully automatic leveling during printing.

Technical Specs

Printing
Print Technology Fused Deposition Modeling (FDM)
Build Volume 400 Ă— 300 Ă— 300 mm
Number of Nozzles Double
Filament Diameter 1.75 mm
Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter 0.4 mm (0.3 / 0.5 / 0.6 / 0.8 / 1.0 mm)
Print File Type STL, OBJ, AMF, Gcode
Speed
Best Printing Speed 55 mm/s
Max. Printing Speed 180 mm/s
Software
Software CreatWare, Simplify 3D, Cura, Slic3r, etc.
Supported File Types STL, OBJ, AMF
Operating Systems Windows, macOS
Special Function
Outage Restored Save data when power is off
Filament Detection Pause printing when filament runs out
Automatic Shut-down Turn off the power automatically when printing is complete
Temperature
Max. Nozzle Temperature 420 °C
Max. Bed Temperature 140 °C
Max. Chamber Temperature 70 °C
Electrical
Power Requirements 220V, 50-60Hz / 110V, 50-60Hz
Rated Power 220V: 2700W, 110V: 2200W
Screen 4.3" Touch Screen
Storage Media U Disk
Connectivity USB
Mechanical
Construction Power-Coated Steel, Aluminum Casting for Motion Components
Build Plate Aviation aluminum plate + PEI sheet
Build Plate Leveling Automatic
Extruder Directly Drive
Stepper Motors 1.8° Step Angle with 1/16 Micro-stepping
XY Positioning Precision 12.7 μm
Z Positioning Precision 1.25 μm
Size & Weight
Product Dimensions & Weight 620 Ă— 485 Ă— 680 mm, 48 kg
Packing Size & Weight 750 Ă— 580 Ă— 720 mm, 62 kg
