Product Description

  • 1.5cm High Accuracy
  • 480,000pts/sec Speed
  • IP65 Metal Design
  • Quick-Swap Battery

Introducing 3DMakerpro Hawk

Hawk is the next-generation LiDAR scanner engineered for professional on-site workflows — combining industrial-grade precision, durability, and portability.

With a powerful hybrid solid-state LiDAR engine, upgraded dual cameras, and IP65 protection, Hawk delivers field-ready reliability for engineering, surveying, construction, and digital twin projects.



1.5cm Accuracy ·480,000 pts/sec

Enhanced Accuracy and Speed

Hawk achieves outstanding spatial precision — up to 1.5cm at 10m, supported by 480,000 points per second and multi-echo LiDAR technology. Its 63.5° vertical field of view minimizes blind spots, making it ideal for capturing complex environments such as building interiors, facades, or industrial plants.

Dual 1-Inch Cameras + NIR Visual Tracking

Upgraded Imaging System

Featuring two 13MP 1-inch cameras, Hawk captures lifelike textures even under mixed lighting. The integrated NIR tracking module ensures accurate positioning and smooth motion tracking, even in low-light or repetitive geometric conditions.

IP65 Metal Body · 900g Compact Form

Built for Field Professionals

Hawk is built for field durability — an IP65-rated metal body with high heat dissipation and reverse-water protection ensures reliable performance in demanding environments. Weighing only 900g, it’s lightweight for handheld or mobile operations across construction, surveying, or inspection tasks.

Smart Power Grip · 65W Fast Charging

Extended Power and Connectivity

With a 12,000mAh removable battery grip, Hawk provides up to 1 hour of continuous operation. Its dual Type-C ports, Wi-Fi 5, and 3.9” AMOLED touchscreen support seamless data transfer, real-time monitoring, and convenient field control.

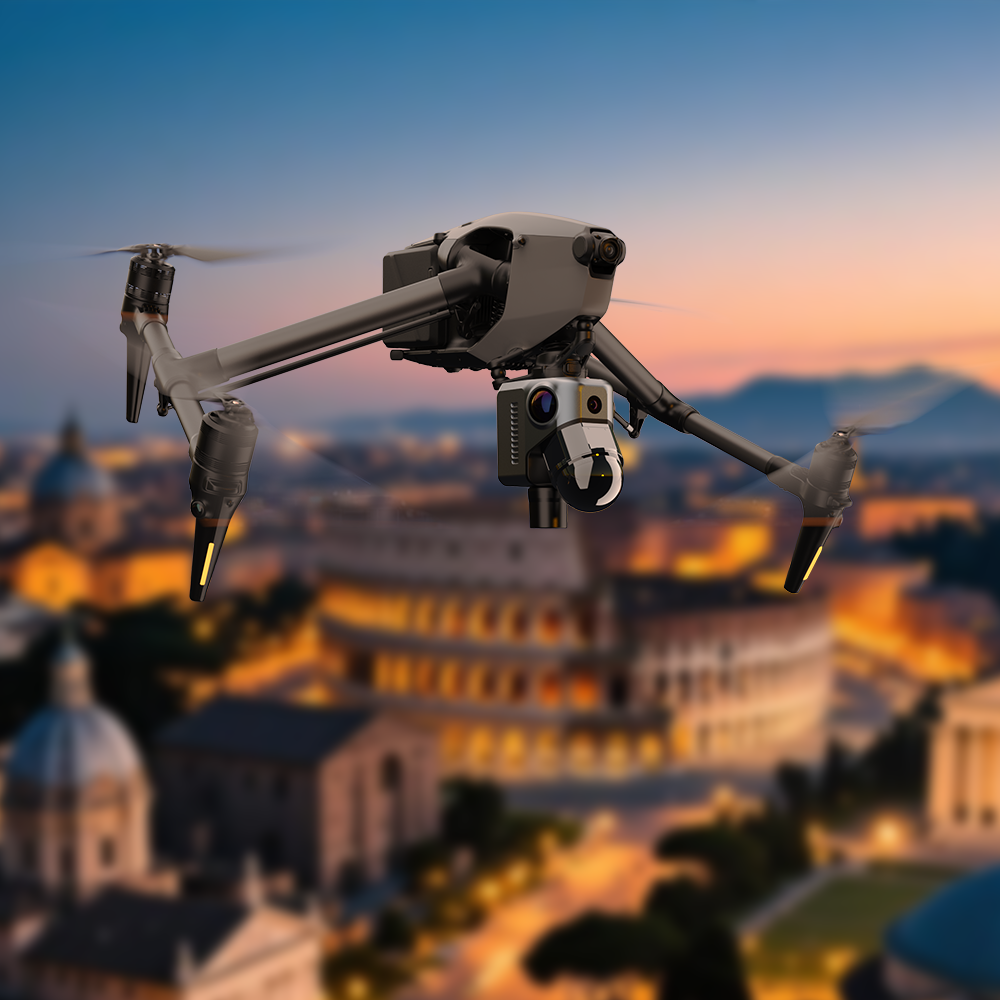

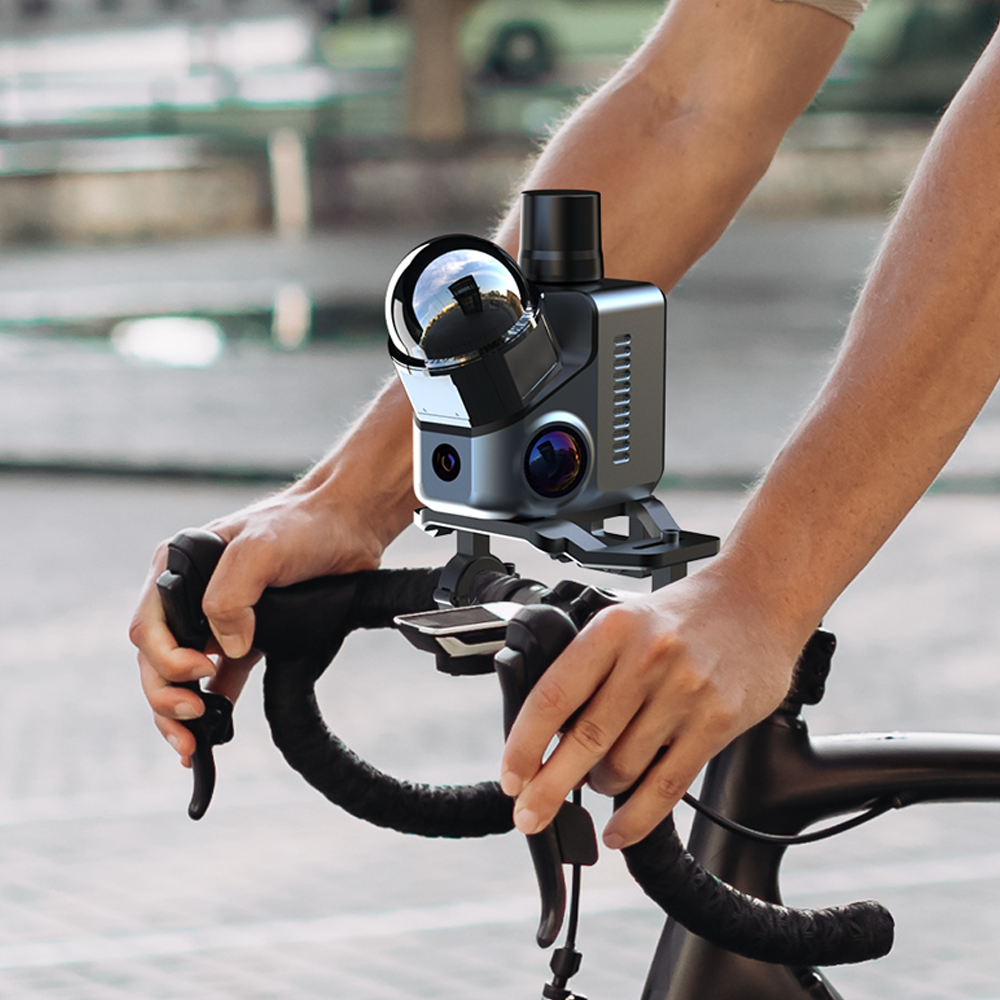

Adaptable to Various Platforms and Vehicles

Hawk supports handheld, tripod, and vehicle-mounted setups, ensuring stable and precise scanning across multiple environments, from construction sites to road mapping.

Platform and Software

Whether it’s architectural surveying, film production, or virtual exhibitions, Eagle’s workflow and companion software ensure a seamless experience from point cloud capture to final presentation.


Tech Specs

Hawk LiDAR Scanner

Accuracy:

1.5cm@10m; 3cm@20m; 5cm@40m
Scan Radius:
40–70m (measured at >10% or >80% reflectivity)
Scan Range:
80–140m
Scan Angle:
Horizontal 360°, Vertical 63.5°
Point Cloud Frequency:
480,000 points/second
Laser Light Source:
905nm
Eye Safety:
Class 1 (IEC60825-1:2014) Eye safe
HDR Mode:
Supports 3–5 EV
Color Texture:
13MP 1-inch sensor camera*2
Single camera NIR visual tracking system
Data Interface:
USB-Type C ×2
Network Support:
Wi-Fi5
Screen:
3.9"
Output Formats:
3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ)
Built-in Battery:
12,000mAh (supports 1 hour of work; external power supply supported)
Dimensions:
120 × 145 × 85 mm
Weight:
900g
Configuration:
8 Cores 2.4GHz 32GB (Supports TF card expansion)
Recommended Configuration:
Processor: Intel Core i7
Memory: 64GB RAM
Graphics Card: NVIDIA RTX 4060, 16GB VRAM
Minimum Configuration:
Processor: Intel Core i7
Memory: 32GB RAM
Graphics Card: NVIDIA RTX 3060, 12GB VRAM

Note: Gaussian Splatting is only supported on NVIDIA GPUs.
