Product Description

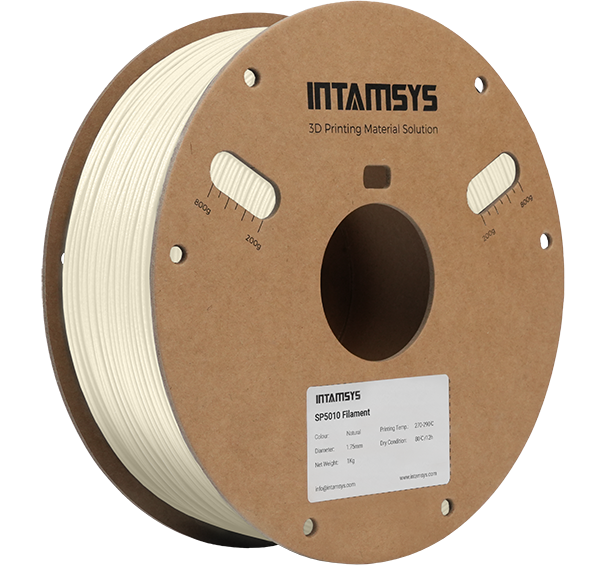

INTAMSYS SP5010 is a breakaway support filament designed for use with PPA-CF and PPA-GF engineering materials.

Its heat resistance and adhesion to compatible model materials help support overhangs, internal features, cavities, and complex geometries during dual-material printing. After printing, the support structures can be manually removed at room temperature without requiring a dissolving solution.

SP5010 is suitable for producing complex PPA-CF and PPA-GF parts on compatible dual-extrusion INTAMSYS printers, including the FUNMAT PRO 310 NEO. It is supplied in a natural color with a filament diameter of 1.75 mm and is available in 1 kg and 2 kg spool sizes.

Key benefits

  • Breakaway support material
  • Designed for PPA-CF and PPA-GF
  • Good heat resistance
  • Effective adhesion to compatible model materials
  • Manually removable at room temperature
  • No dissolving solution required
  • Supports overhangs and complex geometries
  • Suitable for dual-material printing
  • Compatible with the FUNMAT PRO 310 NEO
  • Available in 1 kg and 2 kg spools

Specifications

Specification Detail
Material Type Breakaway support filament
Material Name SP5010
Filament Diameter 1.75 mm
Color Natural
Available Spool Sizes 1 kg and 2 kg
Removal Method Manual breakaway
Removal Temperature Room temperature
Compatible Model Materials PPA-CF and PPA-GF
Heat Resistance Good
Compatible Printer INTAMSYS FUNMAT PRO 310 NEO
Printing Method Dual-material FFF printing

Typical applications

  • Support structures for PPA-CF parts
  • Support structures for PPA-GF parts
  • Complex industrial components
  • Parts with overhangs
  • Internal cavities
  • Intricate geometries
  • Engineering prototypes
  • Manufacturing jigs and fixtures
  • Functional production parts
  • Dual-material industrial printing

Compatibility

Compatible main product:

INTAMSYS FUNMAT PRO 310 NEO

Compatible model materials:

INTAMSYS PPA-CF
INTAMSYS PPA-GF

Removal method:

Allow the printed part to cool before manually removing the SP5010 support structures at room temperature.
