Product Description
INTAMSYS PEEK-GF combines the high thermal, mechanical, and chemical performance of PEEK with 10% chopped glass-fiber reinforcement.
The glass fibers increase the material’s stiffness and modulus while improving heat resistance, wear resistance, dimensional stability, and printed surface quality. Compared with standard unfilled PEEK, PEEK-GF provides improved rigidity and reduced deformation for demanding functional parts.
Glass-fiber reinforcement also improves electrical insulation, making PEEK-GF suitable for electrical, electronic, semiconductor, and high-temperature insulating applications where carbon-fiber-reinforced materials may not be appropriate.
The material offers strong resistance to chemicals, steam, and hydrolysis. INTAMSYS also states that its formulation reduces crystallization speed, improving printability and printed-part surface quality compared with conventional glass-fiber-reinforced PEEK materials.
PEEK-GF is suitable for aerospace, automotive, electronics, semiconductor, oil and gas, advanced manufacturing, and industrial tooling applications. It can be used for functional prototypes, manufacturing aids, electrically insulating components, and low-volume end-use parts.

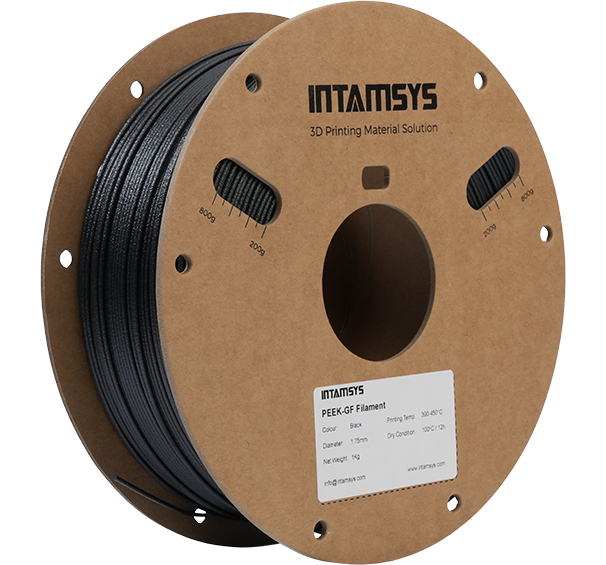

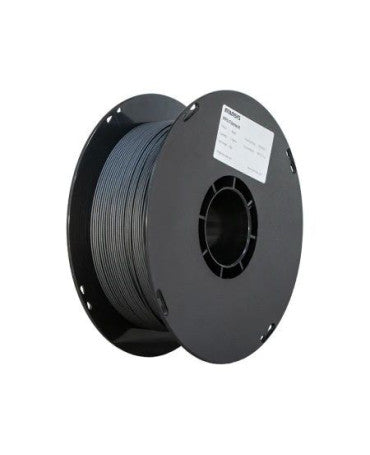

The filament is black, has a diameter of 1.75 mm, and is available in 500 g, 1 kg, and 3 kg spool sizes.
Processing PEEK-GF requires a high-temperature industrial printer. The INTAMSYS FUNMAT HT provides a nozzle temperature of up to 450°C, a build plate reaching 160°C, and a heated chamber reaching 90°C.
Because glass-fiber-filled filaments can cause nozzle wear, customers should use the appropriate INTAMSYS high-temperature, wear-resistant nozzle or printhead configuration specified for reinforced materials.
These material characteristics are documented on the official INTAMSYS PEEK-GF page.
Key benefits
- Reinforced with 10% chopped glass fiber
- Increased modulus and stiffness
- Improved heat resistance
- Improved dimensional stability
- Strong chemical resistance
- Steam and hydrolysis resistance
- Improved wear resistance
- Better electrical insulation than carbon-fiber-reinforced PEEK
- Reduced crystallization speed for improved printability
- Fine printed surface quality
- Compatible with the INTAMSYS FUNMAT HT
- Available in 500 g, 1 kg, and 3 kg spools
Specifications
| Specification | Detail |
|---|---|
| Material | Glass-fiber-reinforced polyether ether ketone |
| Material abbreviation | PEEK-GF |
| Base polymer content | Approximately 90% PEEK |
| Reinforcement | 10% chopped glass fiber |
| Filament diameter | 1.75 mm |
| Color | Black |
| Available spool sizes | 500 g, 1 kg and 3 kg |
| Material category | High-performance thermoplastic composite |
| Melting point | 343°C |
| Density | 1.35 g/cm³ |
| Physical form | Solid filament |
| Flammability | Classified as not flammable in the SDS |
| Chemical resistance | High |
| Steam resistance | Yes |
| Hydrolysis resistance | Yes |
| Electrical insulation | Improved through glass-fiber reinforcement |
| Recommended printer | INTAMSYS FUNMAT HT |
| Recommended support material | INTAMSYS SP5000 |
| Brand | INTAMSYS |
The composition, melting point and density figures are documented in the official INTAMSYS PEEK-GF Safety Data Sheet.
Typical applications
- Electrical insulating components
- Electronic and semiconductor tooling
- Aerospace components
- Automotive components
- Oil and gas equipment
- Chemical-resistant components
- High-temperature housings
- Rigid structural components
- Wear-resistant parts
- Jigs and fixtures
- Manufacturing tools
- Functional prototypes
- Low-volume end-use components
Compatibility
Compatible printer:
INTAMSYS FUNMAT HT Enhanced
Recommended support material:
INTAMSYS SP5000
Recommended printing hardware:
Use the appropriate INTAMSYS high-temperature, wear-resistant nozzle or printhead intended for reinforced materials.
Storage and handling
- Store in a dry, well-ventilated location.
- Keep the container or packaging tightly closed.
- Protect the filament from moisture contamination.
- Keep away from heat, sparks, flames, and other ignition sources.
- Provide adequate ventilation while printing.
- Avoid breathing dust produced during sanding, cutting, or finishing.
- Avoid eye contact with dust and loose glass fibers.
- Wear suitable protection when handling hot or molten material.
- Follow local handling and disposal regulations.
